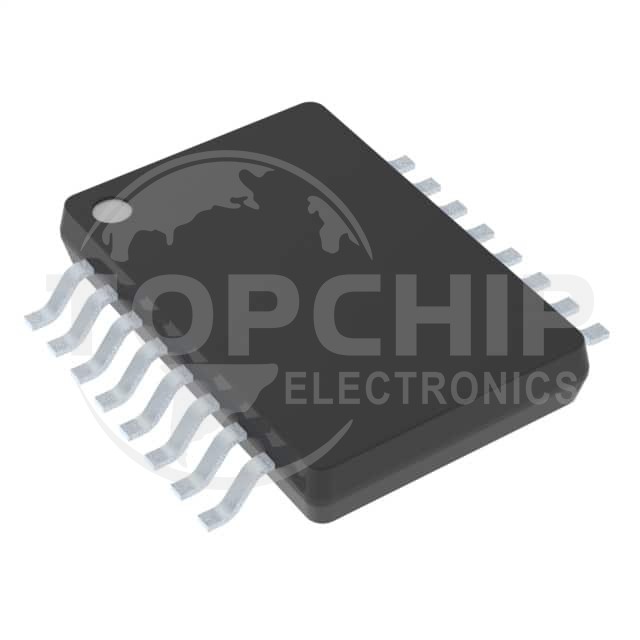

ADG734BRUZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:4
• On-State Resistance (Max):4.5Ohm
• Channel-to-Channel Matching (ΔRon):-
• Voltage - Supply, Single (V+):1.8V ~ 5.5V
• Voltage - Supply, Dual (V±):±2.5V
• Switch Time (Ton, Toff) (Max):21ns, 10ns (Typ)
• -3db Bandwidth:200MHz
• Charge Injection:5pC
• Channel Capacitance (CS(off), CD(off)):11pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-67dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount
• Package / Case:20-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:20-TSSOP
