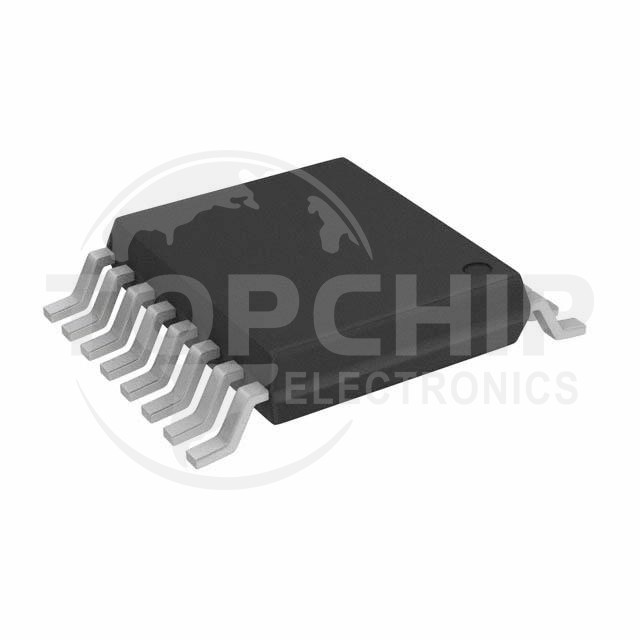

MAX4523EUE+ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:SPST - NO/NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):100Ohm
• Channel-to-Channel Matching (ΔRon):1Ohm
• Voltage - Supply, Single (V+):2V ~ 12V
• Voltage - Supply, Dual (V±):±2V ~ 6V
• Switch Time (Ton, Toff) (Max):80ns, 30ns
• -3db Bandwidth:-
• Charge Injection:1pC
• Channel Capacitance (CS(off), CD(off)):2pF, 2pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-90dB @ 100kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount
• Package / Case:16-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:16-TSSOP
