ADG1604BRUZ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:SP4T
• Multiplexer/Demultiplexer Circuit:4:1
• Number of Circuits:1
• On-State Resistance (Max):1.1Ohm
• Channel-to-Channel Matching (ΔRon):30mOhm
• Voltage - Supply, Single (V+):3.3V ~ 16V
• Voltage - Supply, Dual (V±):±3.3V ~ 8V
• Switch Time (Ton, Toff) (Max):95ns, 173ns
• -3db Bandwidth:19MHz
• Charge Injection:125pC
• Channel Capacitance (CS(off), CD(off)):60pF, 270pF
• Current - Leakage (IS(off)) (Max):200pA
• Crosstalk:-70dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

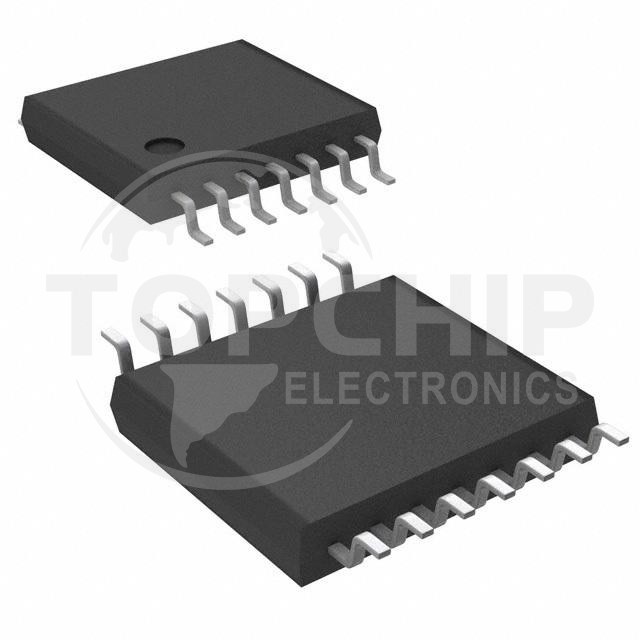

• Package / Case:14-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:14-TSSOP
