ADG4613BCPZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NO/NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):5.1Ohm
• Channel-to-Channel Matching (ΔRon):50mOhm
• Voltage - Supply, Single (V+):3V ~ 12V
• Voltage - Supply, Dual (V±):±3V ~ 5.5V
• Switch Time (Ton, Toff) (Max):73ns, 91ns
• -3db Bandwidth:250MHz
• Charge Injection:292pC
• Channel Capacitance (CS(off), CD(off)):11.5pF, 11.5pF
• Current - Leakage (IS(off)) (Max):10nA
• Crosstalk:-74dB @ 1MHz
• Operating Temperature:-40°C ~ 105°C (TA)
• Mounting Type:Surface Mount

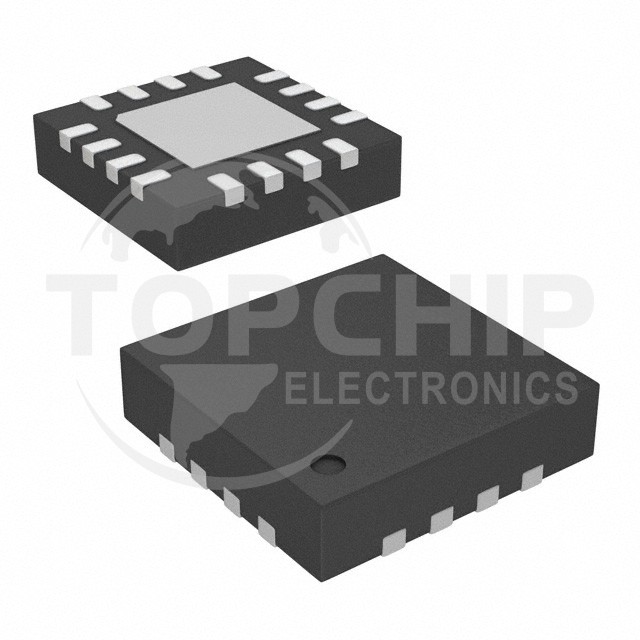

• Package / Case:16-WFQFN Exposed Pad, CSP
• Supplier Device Package:16-LFCSP-WQ (3x3)
