ADG823BRMZ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:SPST - NO/NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:2
• On-State Resistance (Max):600mOhm
• Channel-to-Channel Matching (ΔRon):160mOhm
• Voltage - Supply, Single (V+):1.8V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):45ns, 16ns
• -3db Bandwidth:24MHz
• Charge Injection:15pC
• Channel Capacitance (CS(off), CD(off)):85pF, 98pF
• Current - Leakage (IS(off)) (Max):250pA
• Crosstalk:-82dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

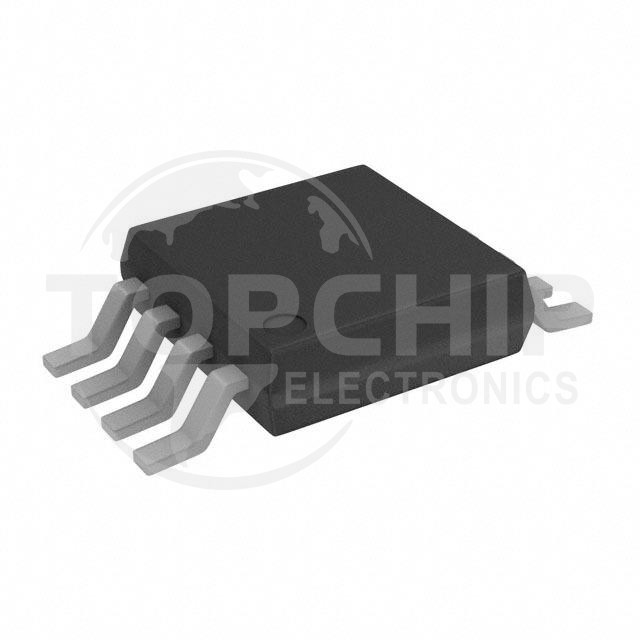

• Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
• Supplier Device Package:8-MSOP
