TS3A4741DCNR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:2
• On-State Resistance (Max):900mOhm
• Channel-to-Channel Matching (ΔRon):30mOhm
• Voltage - Supply, Single (V+):1.6V ~ 3.6V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):14ns, 9ns
• -3db Bandwidth:125MHz
• Charge Injection:3pC
• Channel Capacitance (CS(off), CD(off)):23pF, 20pF
• Current - Leakage (IS(off)) (Max):2nA
• Crosstalk:-95dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

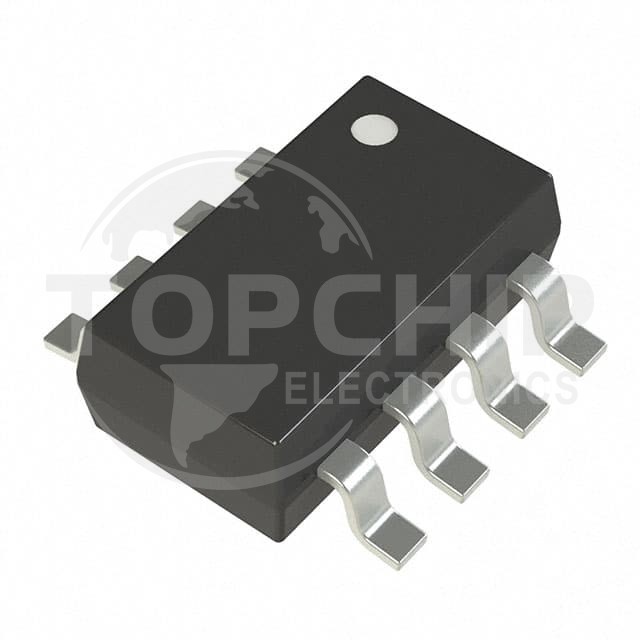

• Package / Case:SOT-23-8
• Supplier Device Package:SOT-23-8
