ADGS1412BCPZ Specifications

• Series:-
• Package:Tray
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):1.8Ohm
• Channel-to-Channel Matching (ΔRon):100mOhm
• Voltage - Supply, Single (V+):5V ~ 20V
• Voltage - Supply, Dual (V±):±4.5V ~ 16.5V
• Switch Time (Ton, Toff) (Max):135ns, 190ns
• -3db Bandwidth:170MHz
• Charge Injection:-20pC
• Channel Capacitance (CS(off), CD(off)):22pF, 23pF
• Current - Leakage (IS(off)) (Max):550pA
• Crosstalk:-100dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

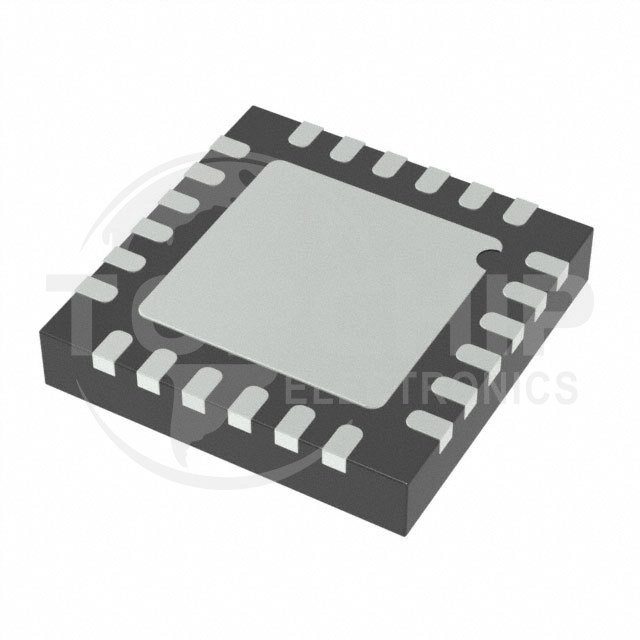

• Package / Case:24-VFQFN Exposed Pad, CSP
• Supplier Device Package:24-LFCSP (4x4)
