ADG1207YCPZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:2
• On-State Resistance (Max):200Ohm
• Channel-to-Channel Matching (ΔRon):3.5Ohm
• Voltage - Supply, Single (V+):5V ~ 16.5V
• Voltage - Supply, Dual (V±):±5V ~ 16.5V
• Switch Time (Ton, Toff) (Max):95ns, 100ns
• -3db Bandwidth:490MHz
• Charge Injection:0.5pC
• Channel Capacitance (CS(off), CD(off)):2pF, 9pF
• Current - Leakage (IS(off)) (Max):200pA
• Crosstalk:-85dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

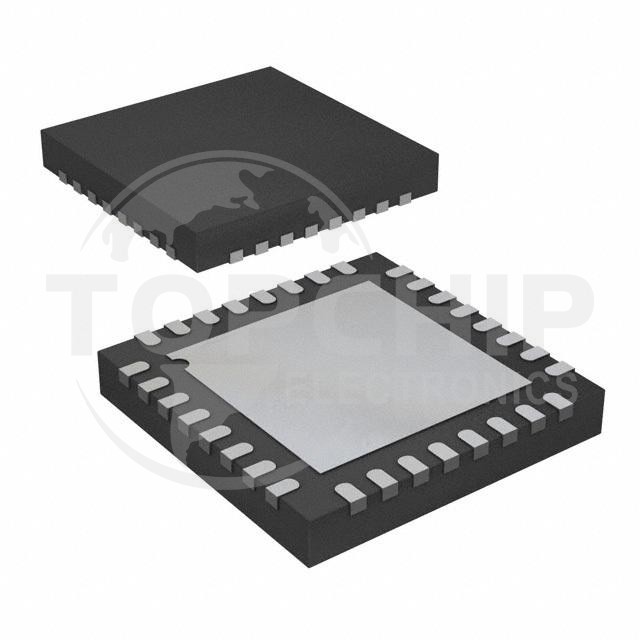

• Package / Case:32-WFQFN Exposed Pad, CSP
• Supplier Device Package:32-LFCSP-WQ (5x5)
