MUX36D08IPWR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:2
• On-State Resistance (Max):170Ohm
• Channel-to-Channel Matching (ΔRon):6Ohm
• Voltage - Supply, Single (V+):10V ~ 36V
• Voltage - Supply, Dual (V±):±5V ~ 18V
• Switch Time (Ton, Toff) (Max):136ns, 78ns
• -3db Bandwidth:-
• Charge Injection:0.31pC
• Channel Capacitance (CS(off), CD(off)):3pF, 7.5pF
• Current - Leakage (IS(off)) (Max):40pA
• Crosstalk:-100dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

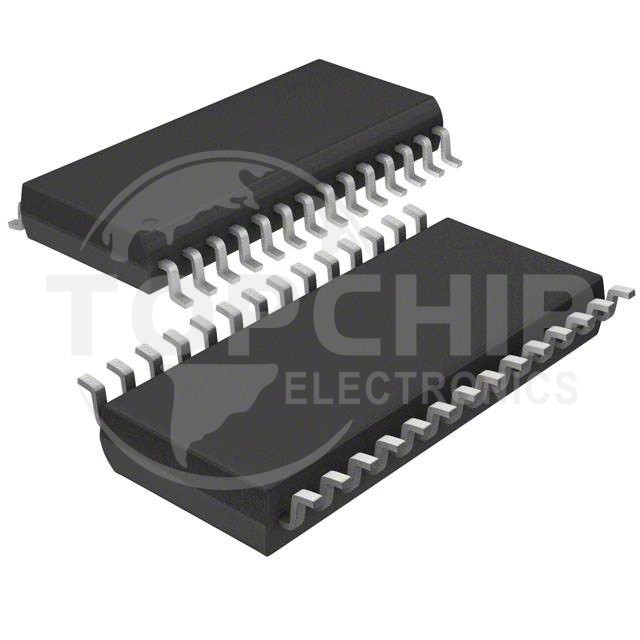

• Package / Case:28-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:28-TSSOP
