ADG659YCPZ Specifications

• Series:-
• Package:Tray
• Part Status:Active
• Switch Circuit:SP4T
• Multiplexer/Demultiplexer Circuit:4:1
• Number of Circuits:2
• On-State Resistance (Max):75Ohm
• Channel-to-Channel Matching (ΔRon):1.3Ohm
• Voltage - Supply, Single (V+):2V ~ 12V
• Voltage - Supply, Dual (V±):±2V ~ 6V
• Switch Time (Ton, Toff) (Max):115ns, 45ns
• -3db Bandwidth:400MHz
• Charge Injection:2pC
• Channel Capacitance (CS(off), CD(off)):4pF, 12pF
• Current - Leakage (IS(off)) (Max):200pA
• Crosstalk:-90dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

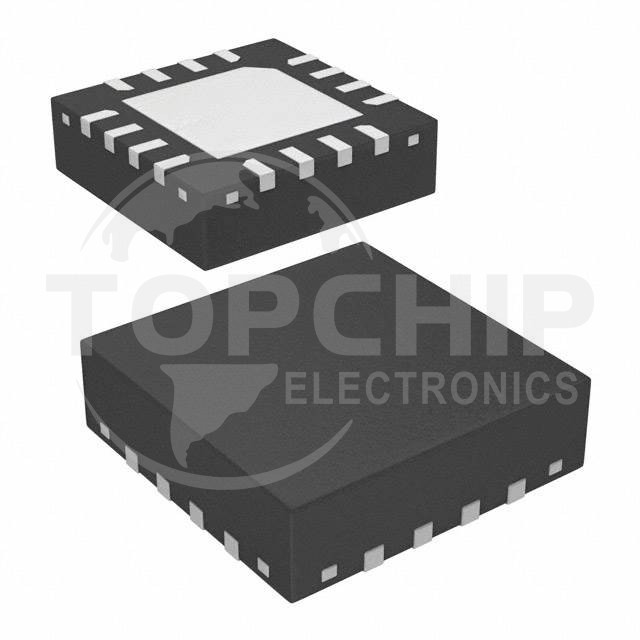

• Package / Case:16-VQFN Exposed Pad, CSP
• Supplier Device Package:16-LFCSP-VQ (4x4)
