ADG1201BRJZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:1
• On-State Resistance (Max):200Ohm
• Channel-to-Channel Matching (ΔRon):-
• Voltage - Supply, Single (V+):5V ~ 16.5V
• Voltage - Supply, Dual (V±):±5V ~ 16.5V
• Switch Time (Ton, Toff) (Max):170ns, 105ns
• -3db Bandwidth:660MHz
• Charge Injection:-0.8pC
• Channel Capacitance (CS(off), CD(off)):3pF, 3.3pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

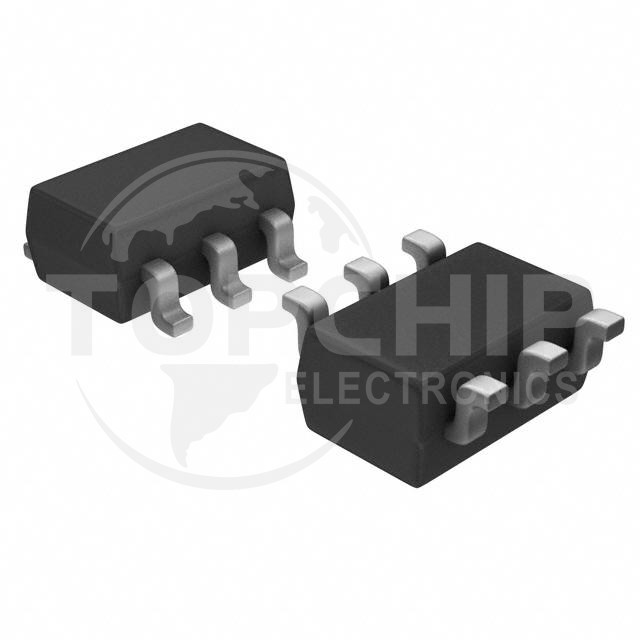

• Package / Case:SOT-23-6
• Supplier Device Package:SOT-23-6
