MAX4575EUA+T Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:2
• On-State Resistance (Max):70Ohm
• Channel-to-Channel Matching (ΔRon):500mOhm
• Voltage - Supply, Single (V+):2V ~ 12V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):150ns, 80ns
• -3db Bandwidth:300MHz
• Charge Injection:5pC
• Channel Capacitance (CS(off), CD(off)):20pF, 12pF
• Current - Leakage (IS(off)) (Max):500pA
• Crosstalk:-90dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

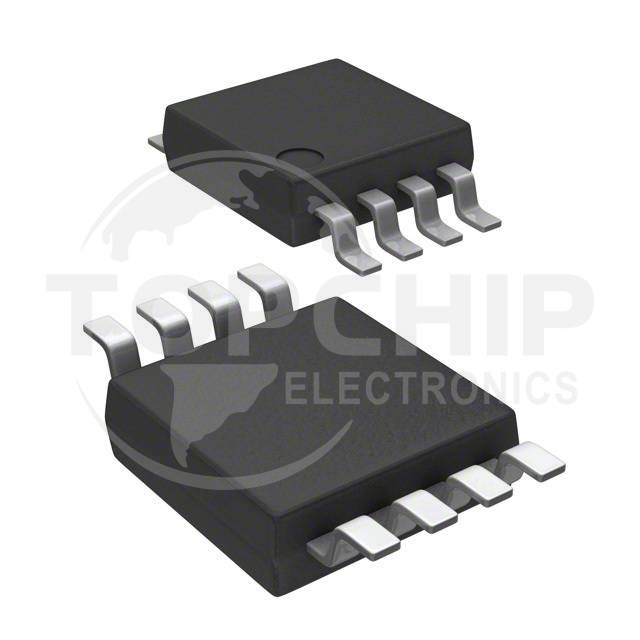

• Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
• Supplier Device Package:8-uMAX
