ADG1236YCPZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:2
• On-State Resistance (Max):190Ohm
• Channel-to-Channel Matching (ΔRon):3.5Ohm
• Voltage - Supply, Single (V+):12V
• Voltage - Supply, Dual (V±):±15V
• Switch Time (Ton, Toff) (Max):150ns, 90ns
• -3db Bandwidth:1GHz
• Charge Injection:-1pC
• Channel Capacitance (CS(off), CD(off)):1.6pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-85dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

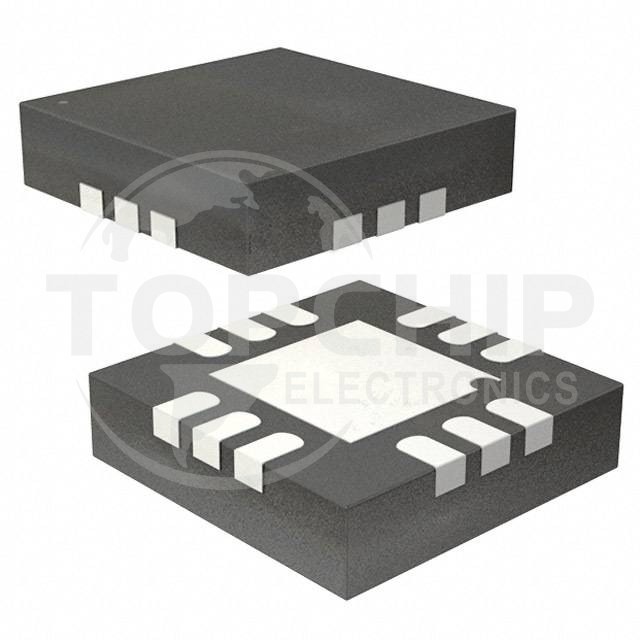

• Package / Case:12-WFQFN Exposed Pad, CSP
• Supplier Device Package:12-LFCSP-WQ (3x3)
