ADG1414BRUZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:8
• On-State Resistance (Max):11.5Ohm
• Channel-to-Channel Matching (ΔRon):550mOhm
• Voltage - Supply, Single (V+):12V
• Voltage - Supply, Dual (V±):±4.5V ~ 16.5V
• Switch Time (Ton, Toff) (Max):93ns, 35ns
• -3db Bandwidth:256MHz
• Charge Injection:10pC
• Channel Capacitance (CS(off), CD(off)):8pF
• Current - Leakage (IS(off)) (Max):150pA
• Crosstalk:-75dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

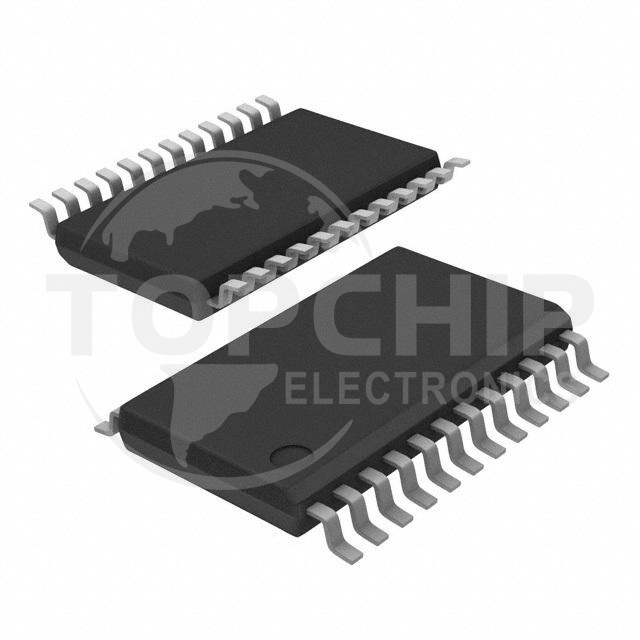

• Package / Case:24-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:24-TSSOP
