ADG1204YCPZ-500RL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SP4T
• Multiplexer/Demultiplexer Circuit:4:1
• Number of Circuits:1
• On-State Resistance (Max):190Ohm
• Channel-to-Channel Matching (ΔRon):6Ohm
• Voltage - Supply, Single (V+):12V
• Voltage - Supply, Dual (V±):±15V
• Switch Time (Ton, Toff) (Max):85ns, 110ns
• -3db Bandwidth:800MHz
• Charge Injection:-0.7pC
• Channel Capacitance (CS(off), CD(off)):1.5pF, 4.2pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-80dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

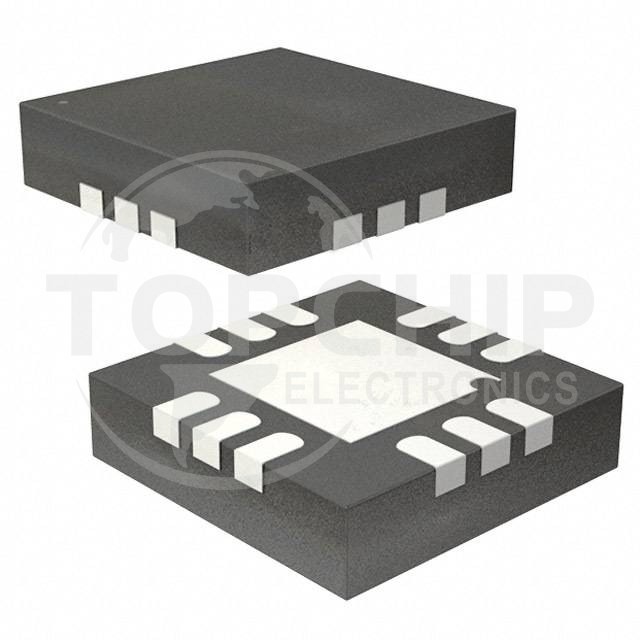

• Package / Case:12-WFQFN Exposed Pad, CSP
• Supplier Device Package:12-LFCSP-WQ (3x3)
