DG408LEDN-T1-GE4 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:1
• On-State Resistance (Max):23Ohm
• Channel-to-Channel Matching (ΔRon):1Ohm
• Voltage - Supply, Single (V+):3V ~ 16V
• Voltage - Supply, Dual (V±):±3V ~ 8V
• Switch Time (Ton, Toff) (Max):72ns, 47ns
• -3db Bandwidth:-
• Charge Injection:11pC
• Channel Capacitance (CS(off), CD(off)):5.5pF, 25pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-98dB @ 100kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

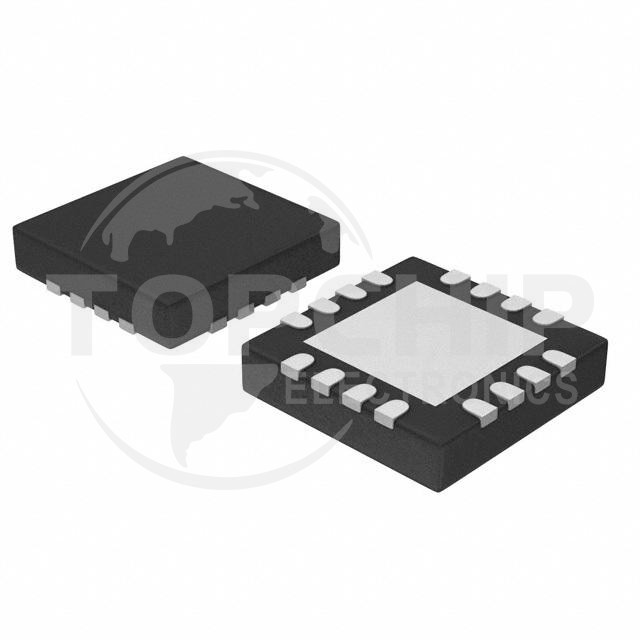

• Package / Case:16-VFQFN Exposed Pad
• Supplier Device Package:16-QFN (3x3)
