ADG888YCPZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:DPDT
• Multiplexer/Demultiplexer Circuit:2:2
• Number of Circuits:2
• On-State Resistance (Max):480mOhm
• Channel-to-Channel Matching (ΔRon):40mOhm
• Voltage - Supply, Single (V+):1.8V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):30ns, 17ns
• -3db Bandwidth:29MHz
• Charge Injection:70pC
• Channel Capacitance (CS(off), CD(off)):58pF
• Current - Leakage (IS(off)) (Max):200pA (Typ)
• Crosstalk:-99dB @ 100kHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

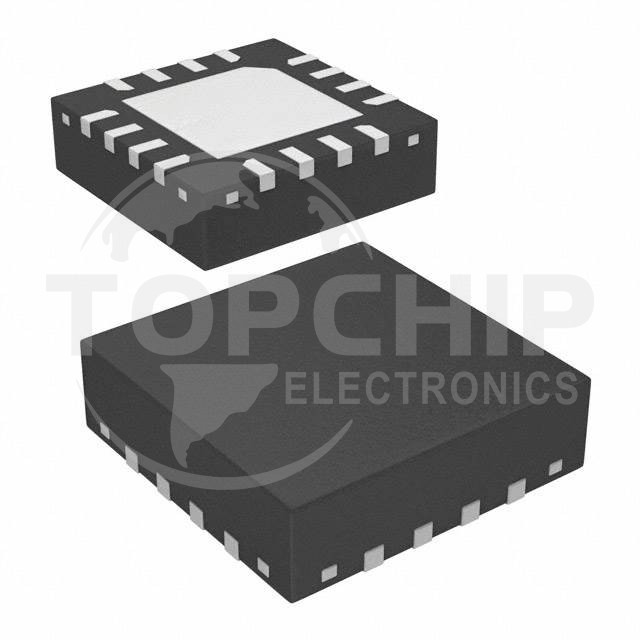

• Package / Case:16-VQFN Exposed Pad, CSP
• Supplier Device Package:16-LFCSP-VQ (4x4)
