MAX4534EUD+ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:SP4T
• Multiplexer/Demultiplexer Circuit:4:1
• Number of Circuits:1
• On-State Resistance (Max):400Ohm
• Channel-to-Channel Matching (ΔRon):2Ohm
• Voltage - Supply, Single (V+):9V ~ 36V
• Voltage - Supply, Dual (V±):±4.5V ~ 20V
• Switch Time (Ton, Toff) (Max):275ns, 200ns
• -3db Bandwidth:-
• Charge Injection:1pC
• Channel Capacitance (CS(off), CD(off)):5pF, 6.5pF
• Current - Leakage (IS(off)) (Max):500pA
• Crosstalk:-53dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

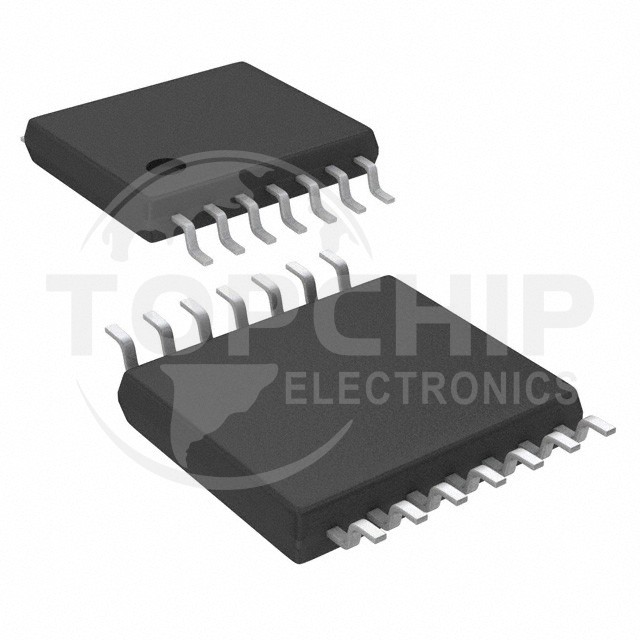

• Package / Case:14-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:14-TSSOP
