CD74HC4067SM96 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:16:1
• Number of Circuits:1
• On-State Resistance (Max):160Ohm
• Channel-to-Channel Matching (ΔRon):8.5Ohm
• Voltage - Supply, Single (V+):2V ~ 6V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):51ns, 49ns
• -3db Bandwidth:89MHz
• Charge Injection:-
• Channel Capacitance (CS(off), CD(off)):5pF, 50pF
• Current - Leakage (IS(off)) (Max):800nA
• Crosstalk:-
• Operating Temperature:-55°C ~ 125°C (TA)
• Mounting Type:Surface Mount

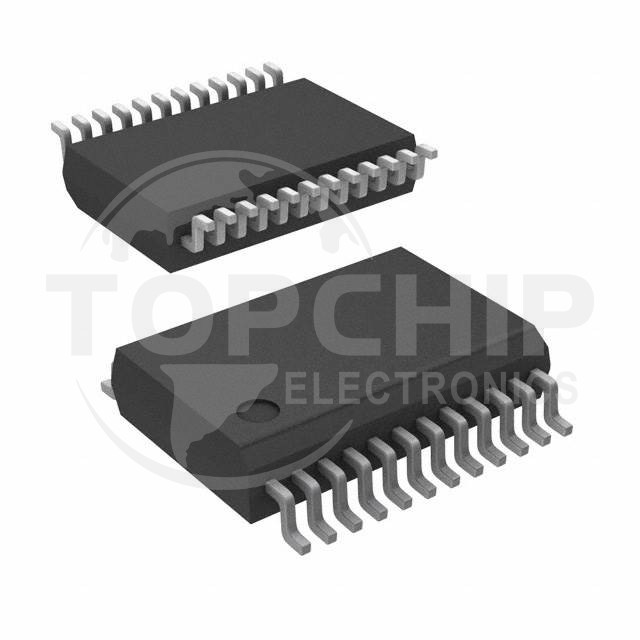

• Package / Case:24-SSOP (0.209", 5.30mm Width)
• Supplier Device Package:24-SSOP
