ADG1607BRUZ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:2
• On-State Resistance (Max):5Ohm
• Channel-to-Channel Matching (ΔRon):200mOhm
• Voltage - Supply, Single (V+):3.3V ~ 16V
• Voltage - Supply, Dual (V±):±3.3V ~ 8V
• Switch Time (Ton, Toff) (Max):128ns, 109ns
• -3db Bandwidth:38MHz
• Charge Injection:33pC
• Channel Capacitance (CS(off), CD(off)):18pF, 120pF
• Current - Leakage (IS(off)) (Max):150pA
• Crosstalk:-62dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

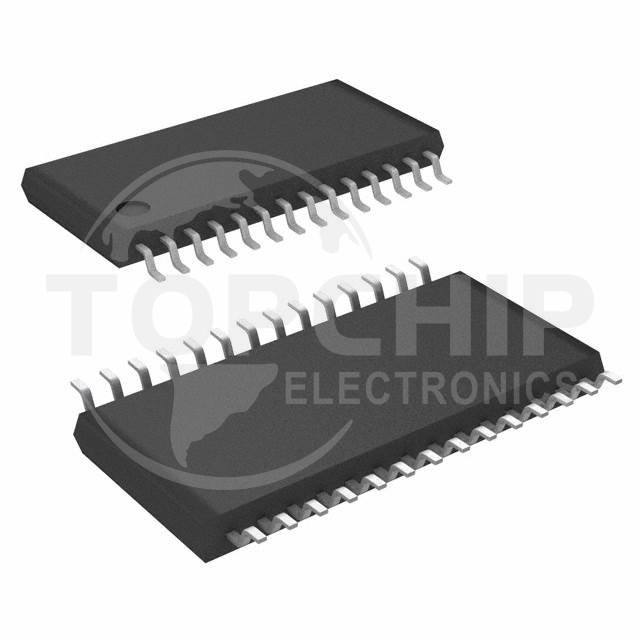

• Package / Case:28-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:28-TSSOP
