ADG701LBRJZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:1
• On-State Resistance (Max):3Ohm
• Channel-to-Channel Matching (ΔRon):-
• Voltage - Supply, Single (V+):1.8V ~ 5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):12ns, 8ns (Typ)
• -3db Bandwidth:200MHz
• Charge Injection:5pC
• Channel Capacitance (CS(off), CD(off)):17pF, 17pF
• Current - Leakage (IS(off)) (Max):250pA
• Crosstalk:-
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

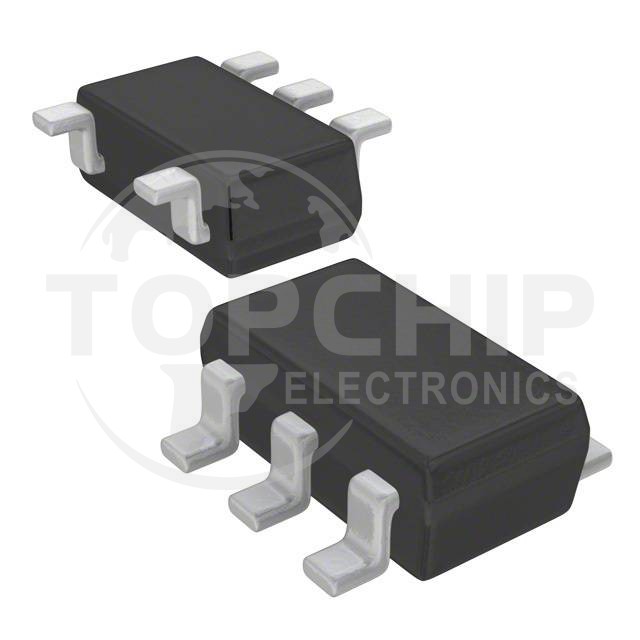

• Package / Case:SC-74A, SOT-753
• Supplier Device Package:SOT-23-5
