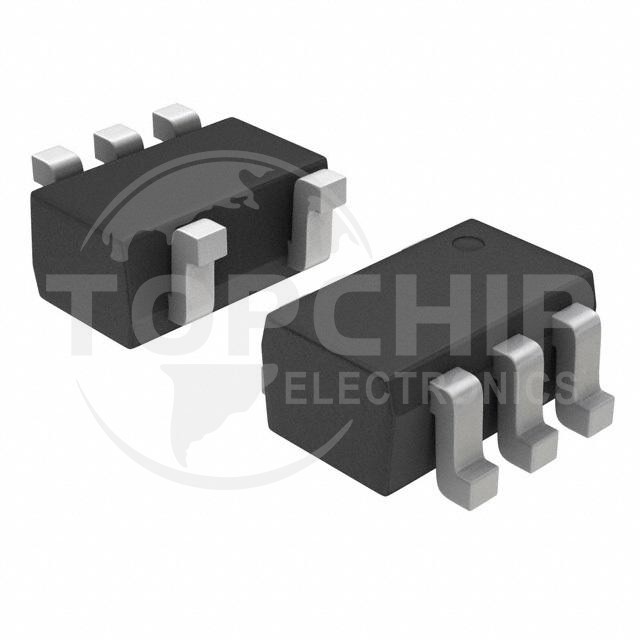

M74VHC1GT66DFT2G Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:1
• On-State Resistance (Max):40Ohm
• Channel-to-Channel Matching (ΔRon):-
• Voltage - Supply, Single (V+):2V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):-
• -3db Bandwidth:180MHz
• Charge Injection:-
• Channel Capacitance (CS(off), CD(off)):10pF
• Current - Leakage (IS(off)) (Max):100nA
• Crosstalk:-
• Operating Temperature:-55°C ~ 125°C (TA)
• Mounting Type:Surface Mount
• Package / Case:5-TSSOP, SC-70-5, SOT-353
• Supplier Device Package:SC-88A (SC-70-5/SOT-353)
