ADG1606BCPZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:16:1
• Number of Circuits:1
• On-State Resistance (Max):5Ohm
• Channel-to-Channel Matching (ΔRon):200mOhm
• Voltage - Supply, Single (V+):3.3V ~ 16V
• Voltage - Supply, Dual (V±):±3.3V ~ 8V
• Switch Time (Ton, Toff) (Max):128ns, 109ns
• -3db Bandwidth:22MHz
• Charge Injection:33pC
• Channel Capacitance (CS(off), CD(off)):18pF, 240pF
• Current - Leakage (IS(off)) (Max):150pA
• Crosstalk:-62dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

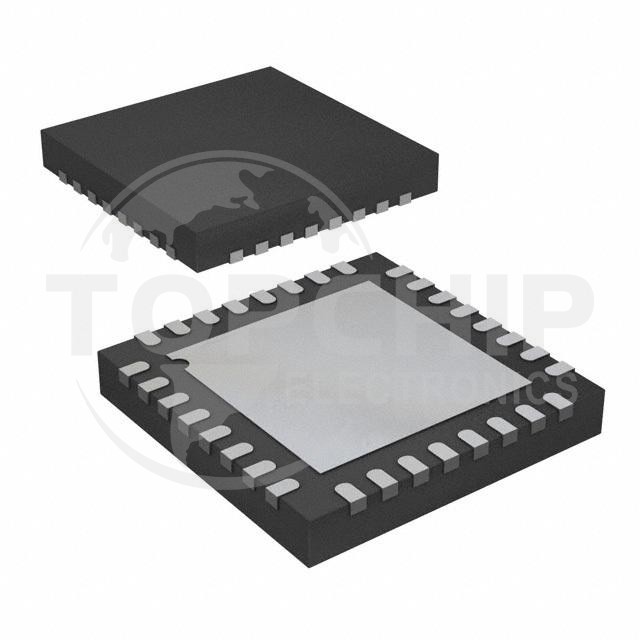

• Package / Case:32-VFQFN Exposed Pad, CSP
• Supplier Device Package:32-LFCSP-VQ (5x5)
