ADG5419BRMZ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:1
• On-State Resistance (Max):14Ohm
• Channel-to-Channel Matching (ΔRon):100mOhm
• Voltage - Supply, Single (V+):9V ~ 40V
• Voltage - Supply, Dual (V±):±9V ~ 22V
• Switch Time (Ton, Toff) (Max):239ns, 185ns
• -3db Bandwidth:190MHz
• Charge Injection:160pC
• Channel Capacitance (CS(off), CD(off)):11pF, 22pF
• Current - Leakage (IS(off)) (Max):250pA
• Crosstalk:-80dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

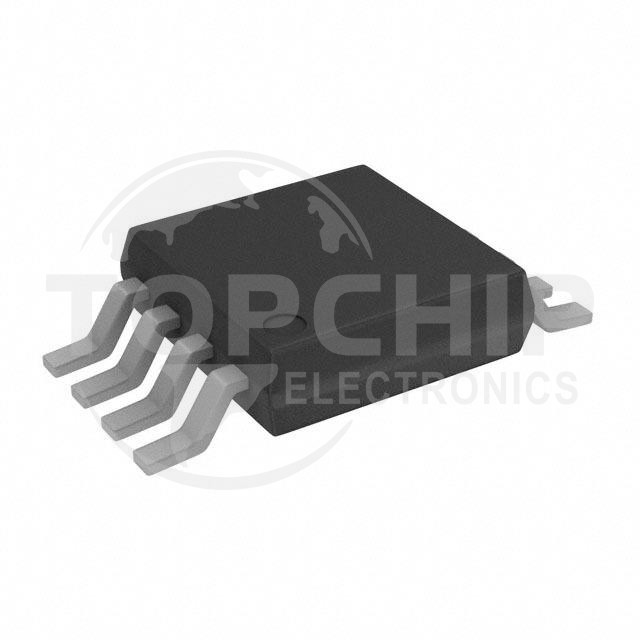

• Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
• Supplier Device Package:8-MSOP
