TMUX1308QBQBRQ1 Specifications

• Series:Automotive, AEC-Q100
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:1
• On-State Resistance (Max):195Ohm
• Channel-to-Channel Matching (ΔRon):7Ohm
• Voltage - Supply, Single (V+):1.62V ~ 5.5V
• Voltage - Supply, Dual (V±):1.62V ~ 5.5V
• Switch Time (Ton, Toff) (Max):32ns, 40ns
• -3db Bandwidth:500MHz
• Charge Injection:-6.5pC
• Channel Capacitance (CS(off), CD(off)):2pF, 7pF
• Current - Leakage (IS(off)) (Max):1pA (Typ)
• Crosstalk:-90dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

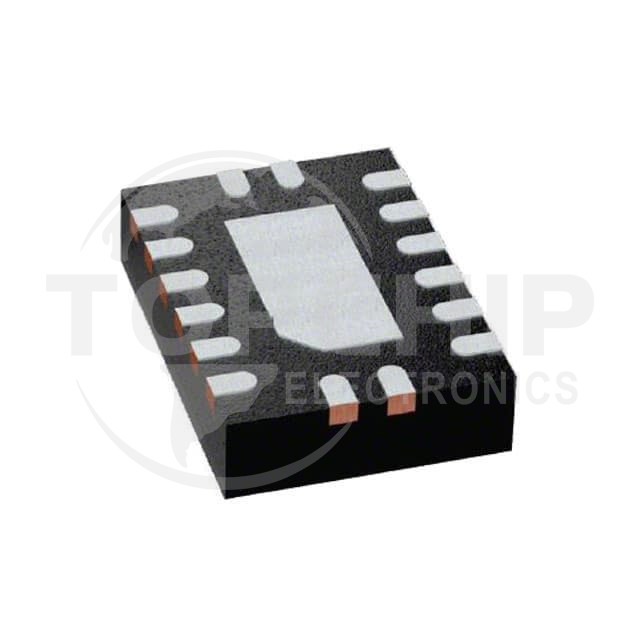

• Package / Case:16-WFQFN Exposed Pad
• Supplier Device Package:16-WQFN (3.5x2.5)
