NLAS4684MNR2G Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:2
• On-State Resistance (Max):800mOhm
• Channel-to-Channel Matching (ΔRon):60mOhm
• Voltage - Supply, Single (V+):1.8V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):30ns, 30ns
• -3db Bandwidth:9.5MHz
• Charge Injection:15pC
• Channel Capacitance (CS(off), CD(off)):102pF, 104pF
• Current - Leakage (IS(off)) (Max):1µA
• Crosstalk:-83dB @ 100kHz
• Operating Temperature:-55°C ~ 125°C (TA)
• Mounting Type:Surface Mount

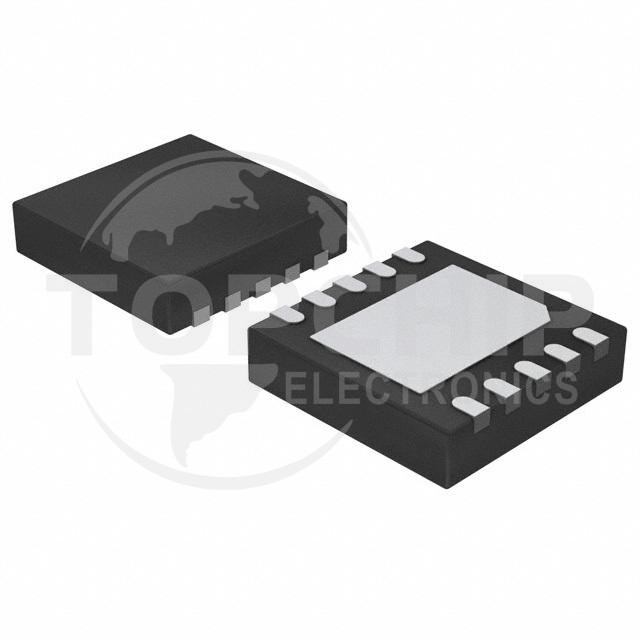

• Package / Case:10-VFDFN Exposed Pad
• Supplier Device Package:10-DFN (3x3)
