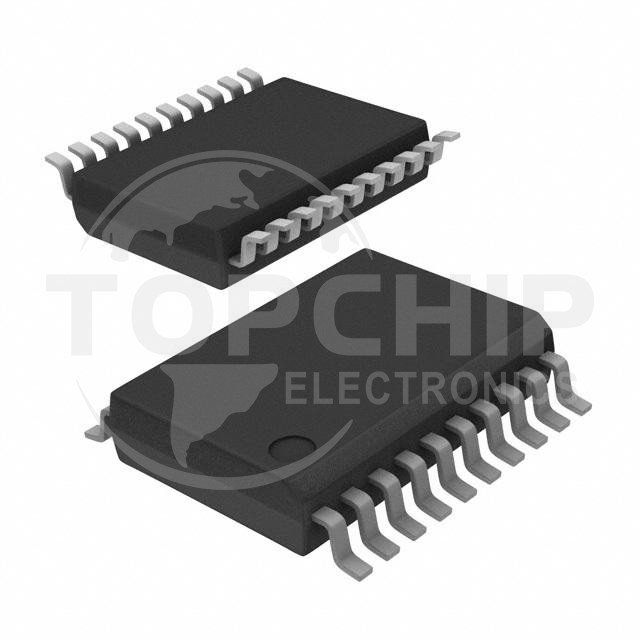

ADG1334BRSZ-REEL Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NO/NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):200Ohm
• Channel-to-Channel Matching (ΔRon):5Ohm
• Voltage - Supply, Single (V+):12V
• Voltage - Supply, Dual (V±):±15V
• Switch Time (Ton, Toff) (Max):130ns, 85ns
• -3db Bandwidth:700MHz
• Charge Injection:2pC
• Channel Capacitance (CS(off), CD(off)):5pF, 5pF
• Current - Leakage (IS(off)) (Max):10nA
• Crosstalk:-85dB @ 1MHz
• Operating Temperature:-40°C ~ 105°C (TA)
• Mounting Type:Surface Mount
• Package / Case:20-SSOP (0.209", 5.30mm Width)
• Supplier Device Package:20-SSOP
