ADG5408BCPZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:1
• On-State Resistance (Max):14Ohm
• Channel-to-Channel Matching (ΔRon):300mOhm
• Voltage - Supply, Single (V+):9V ~ 40V
• Voltage - Supply, Dual (V±):±9V ~ 22V
• Switch Time (Ton, Toff) (Max):165ns, 153ns
• -3db Bandwidth:50MHz
• Charge Injection:155pC
• Channel Capacitance (CS(off), CD(off)):17pF, 98pF
• Current - Leakage (IS(off)) (Max):250pA
• Crosstalk:-60dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

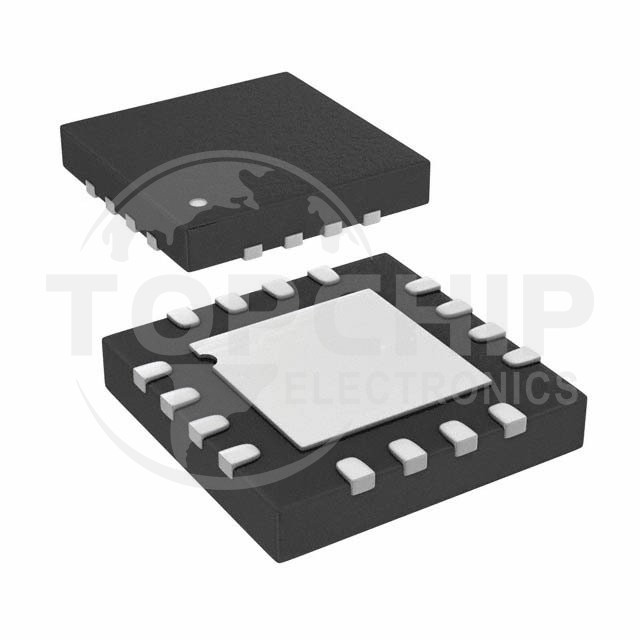

• Package / Case:16-WQFN Exposed Pad, CSP
• Supplier Device Package:16-LFCSP-WQ (4x4)
