MAX4751EGE+ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):900mOhm
• Channel-to-Channel Matching (ΔRon):30mOhm
• Voltage - Supply, Single (V+):1.6V ~ 3.6V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):85ns, 45ns
• -3db Bandwidth:250MHz
• Charge Injection:9pC
• Channel Capacitance (CS(off), CD(off)):20pF, 20pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-84dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

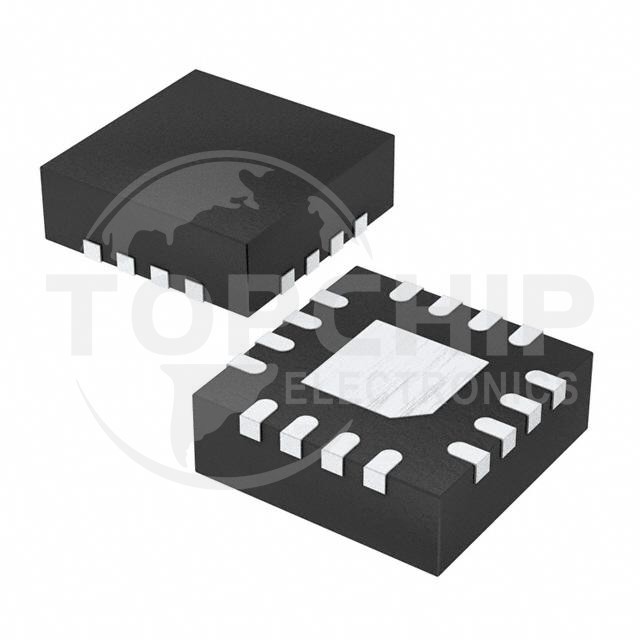

• Package / Case:16-VFQFN Exposed Pad
• Supplier Device Package:16-QFN (3x3)
