ADG1419BCPZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:1
• On-State Resistance (Max):2.4Ohm
• Channel-to-Channel Matching (ΔRon):50mOhm
• Voltage - Supply, Single (V+):5V ~ 16.5V
• Voltage - Supply, Dual (V±):±4.5V ~ 16.5V
• Switch Time (Ton, Toff) (Max):110ns, 140ns
• -3db Bandwidth:135MHz
• Charge Injection:-16pC
• Channel Capacitance (CS(off), CD(off)):19pF, 44pF
• Current - Leakage (IS(off)) (Max):500pA
• Crosstalk:-64dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

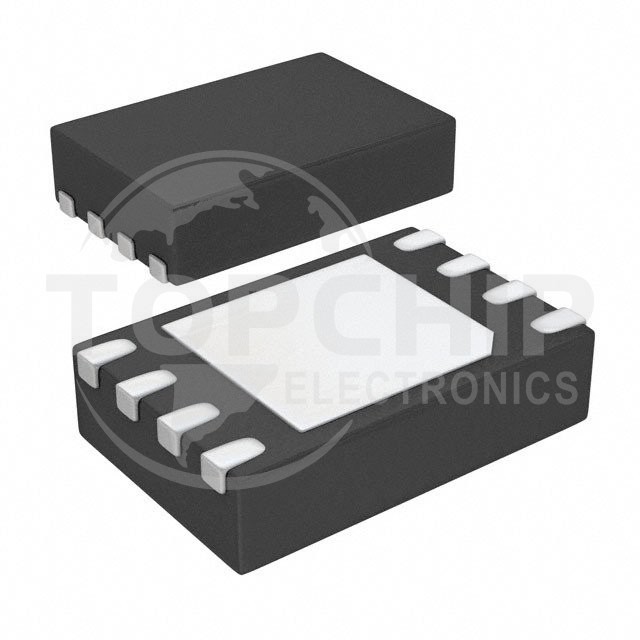

• Package / Case:8-WFDFN Exposed Pad, CSP
• Supplier Device Package:8-LFCSP-WD (2x3)
