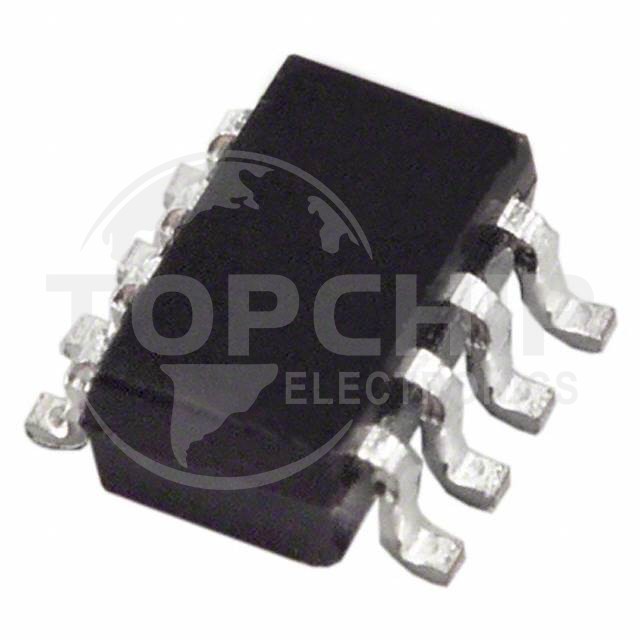

ADG619BRTZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:1
• On-State Resistance (Max):6.5Ohm
• Channel-to-Channel Matching (ΔRon):700mOhm
• Voltage - Supply, Single (V+):2.7V ~ 5.5V
• Voltage - Supply, Dual (V±):±2.7V ~ 5.5V
• Switch Time (Ton, Toff) (Max):120ns, 75ns
• -3db Bandwidth:190MHz
• Charge Injection:110pC
• Channel Capacitance (CS(off), CD(off)):25pF
• Current - Leakage (IS(off)) (Max):250pA
• Crosstalk:-67dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount
• Package / Case:SOT-23-8
• Supplier Device Package:SOT-23-8
