ADG1406BRUZ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:16:1
• Number of Circuits:1
• On-State Resistance (Max):11.5Ohm
• Channel-to-Channel Matching (ΔRon):550mOhm
• Voltage - Supply, Single (V+):5V ~ 16.5V
• Voltage - Supply, Dual (V±):±4.5V ~ 16.5V
• Switch Time (Ton, Toff) (Max):110ns, 120ns
• -3db Bandwidth:60MHz
• Charge Injection:10pC
• Channel Capacitance (CS(off), CD(off)):8pF, 90pf
• Current - Leakage (IS(off)) (Max):250pA
• Crosstalk:-70dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

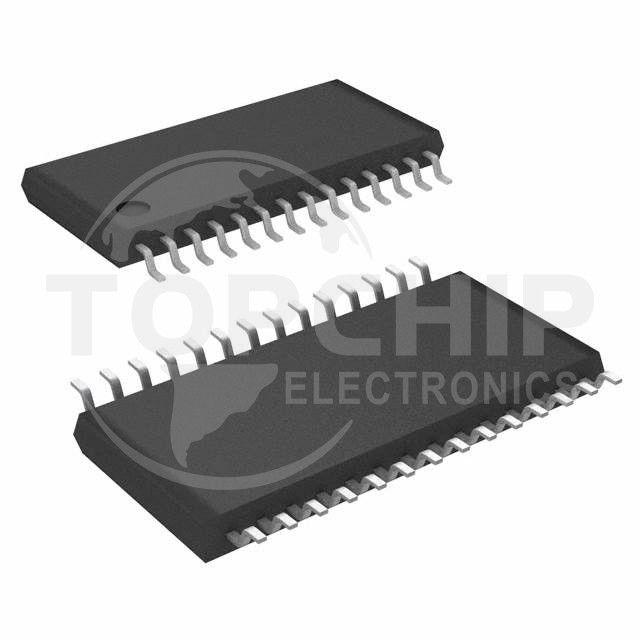

• Package / Case:28-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:28-TSSOP
