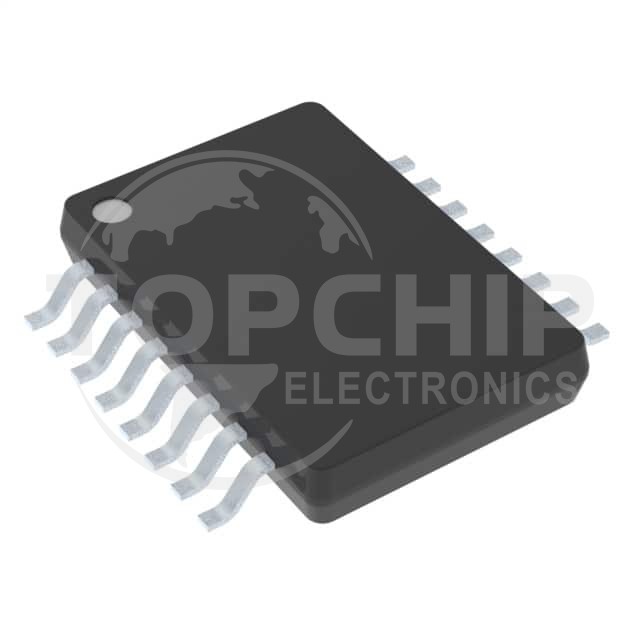

ADG1434YRUZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:4
• On-State Resistance (Max):4.7Ohm
• Channel-to-Channel Matching (ΔRon):500mOhm
• Voltage - Supply, Single (V+):5V ~ 16.5V
• Voltage - Supply, Dual (V±):±4.5V ~ 16.5V
• Switch Time (Ton, Toff) (Max):170ns, 75ns
• -3db Bandwidth:200MHz
• Charge Injection:-50pC
• Channel Capacitance (CS(off), CD(off)):12pF, 22pF
• Current - Leakage (IS(off)) (Max):300pA
• Crosstalk:-70dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount
• Package / Case:20-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:20-TSSOP
