ADG787BCPZ-500RL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:2
• On-State Resistance (Max):3Ohm
• Channel-to-Channel Matching (ΔRon):20mOhm
• Voltage - Supply, Single (V+):1.8V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):19ns, 5ns
• -3db Bandwidth:145MHz
• Charge Injection:14pC
• Channel Capacitance (CS(off), CD(off)):16pF
• Current - Leakage (IS(off)) (Max):50pA (Typ)
• Crosstalk:-110dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

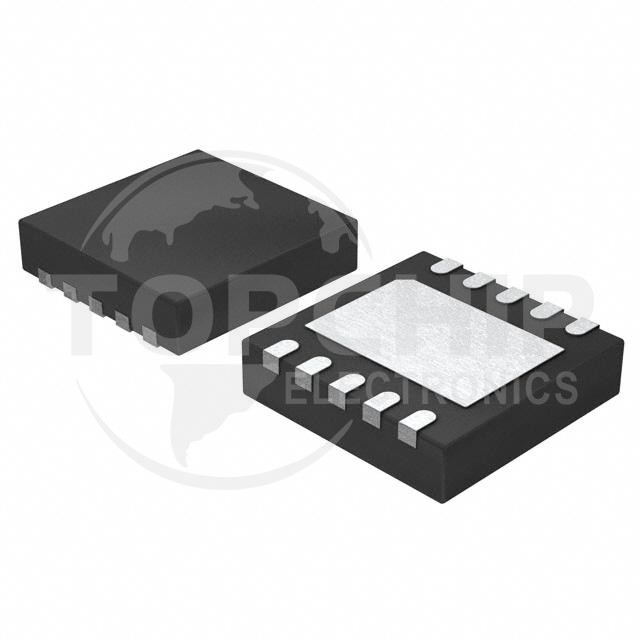

• Package / Case:10-VFDFN Exposed Pad, CSP
• Supplier Device Package:10-LFCSP-WD (3x3)
