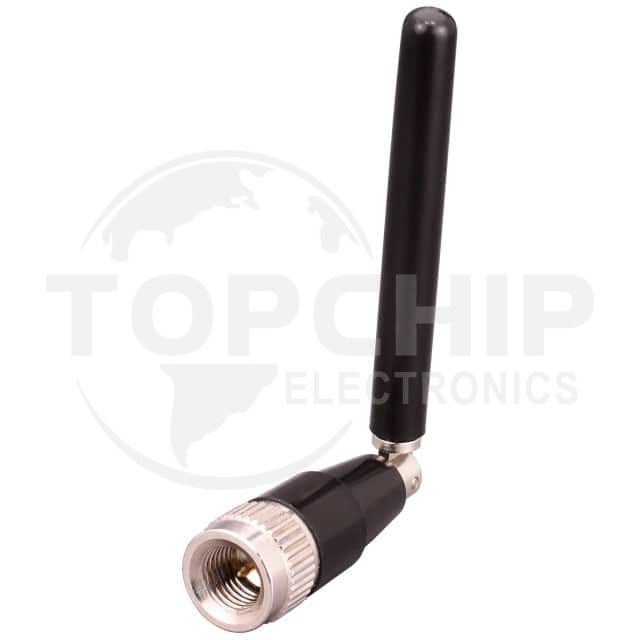

ANT-LTE-MON-SMA Specifications

• Series:MON
• Package:Bag
• Part Status:Active
• RF Family/Standard:Cellular
• Frequency Group:Wide Band
• Frequency (Center/Band):700MHz, 800MHz, 850MHz, 900MHz,1.7GHz, 1.8GHz,1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 2.6GHz, 2.7GHz, 3.4GHz, 3.5GHz, 3.6GHz, 3.7GHz, 3.8GHz
• Frequency Range:698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz, 3.6GHz ~ 3.8GHz
• Antenna Type:Whip, Tilt/Swivel
• Number of Bands:6
• VSWR:2.5, 3.5, 4.5, 3.5, 2.5, 2.75
• Return Loss:-
• Gain:4.75dBi, 2.75dBi, 1.75dBi, 1dBi, 4.85dBi, 5.5dBi
• Power - Max:15 W
• Features:-
• Termination:SMA Male
• Ingress Protection:-
• Mounting Type:Connector Mount
• Height (Max):-
• Applications:CAT-M1, Cellular, LTE, NB-IOT, 2G, 3G, 4G
