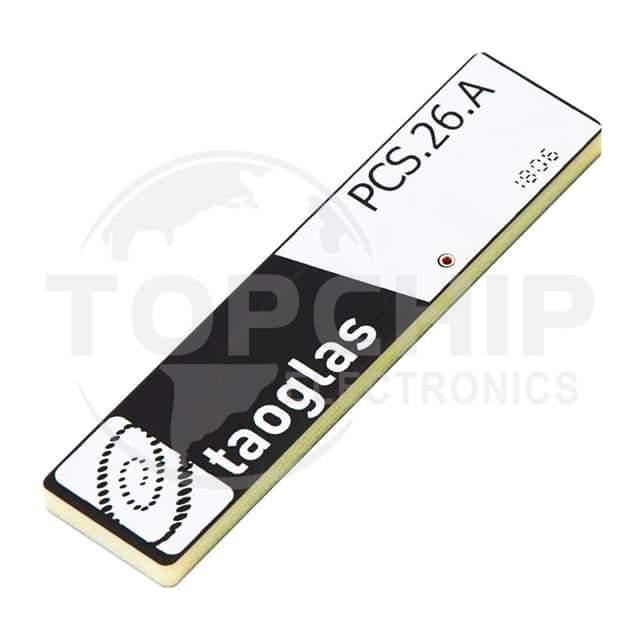

PCS.26.A Specifications

• Series:Havok
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• RF Family/Standard:Cellular
• Frequency Group:Wide Band
• Frequency (Center/Band):657.5MHz, 752MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 4.495GHz
• Frequency Range:617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz
• Antenna Type:Chip
• Number of Bands:8
• VSWR:-
• Return Loss:-7dB, -7dB, -6dB
• Gain:6.67dBi, 2.54dBi, 3.53dBi, 3.75dBi, 4.85dBi, 3.99dBi, 4.26dBi, 3.86dBi
• Power - Max:5 W
• Features:-
• Termination:Solder
• Ingress Protection:-
• Mounting Type:Surface Mount
• Height (Max):0.118" (3.00mm)
• Applications:CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
