2195762-1

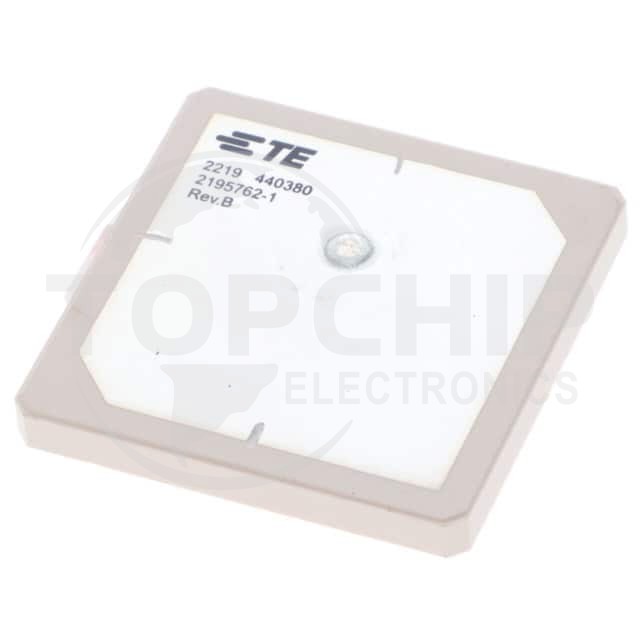

Image is for reference, please contact us to get the real picture

Manufacturer Part
2195762-1
Manufacturer
TE Connectivity AMP Connectors
Description
GNSS PATCH 35X35MM SMD
Category
RF/IF and RFID
Family
RF Antennas
Series
-
In Stock
424
Datasheets
-

2195762-1 Specifications

  • Series:-
  • Package:Bag
  • Part Status:Active
  • RF Family/Standard:Navigation
  • Frequency Group:UHF (1GHz ~ 2GHz)
  • Frequency (Center/Band):1.5825GHz
  • Frequency Range:1.559GHz ~ 1.606GHz
  • Antenna Type:Ceramic Patch
  • Number of Bands:1
  • VSWR:3
  • Return Loss:-
  • Gain:4.1dBi, 5.7dBi
  • Power - Max:-
  • Features:-
  • Termination:Pin
  • Ingress Protection:-
  • Mounting Type:Adhesive
  • Height (Max):0.161" (4.10mm)
  • Applications:GNSS
