CPPT4-LT7PT Specifications

• Series:FIPO™ CPP
• Package:Tube
• Part Status:Discontinued at Digi-Key
• Base Resonator:Crystal
• Type:XO (Standard)
• Programmable Type:Programmed by Digi-Key (Enter your frequency in Web Order Notes)
• Available Frequency Range:1 MHz ~ 100.0 MHz
• Function:Enable/Disable
• Output:TTL
• Voltage - Supply:3.3V
• Frequency Stability:±50ppm
• Frequency Stability (Total):-
• Operating Temperature:-40°C ~ 85°C
• Spread Spectrum Bandwidth:-
• Current - Supply (Max):25mA
• Ratings:-
• Mounting Type:Through Hole

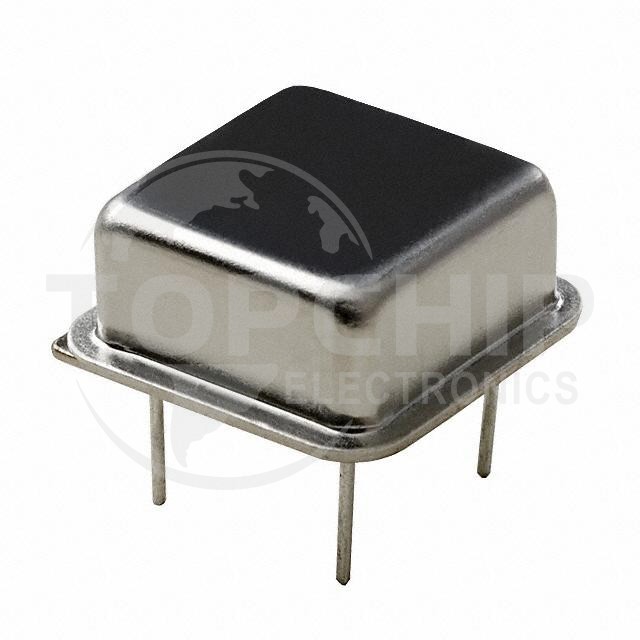

• Package / Case:8-DIP, 4 Leads (Half Size, Metal Can)
• Size / Dimension:0.520" L x 0.520" W (13.20mm x 13.20mm)
• Height - Seated (Max):0.220" (5.60mm)
