Y1685V0001AA0W

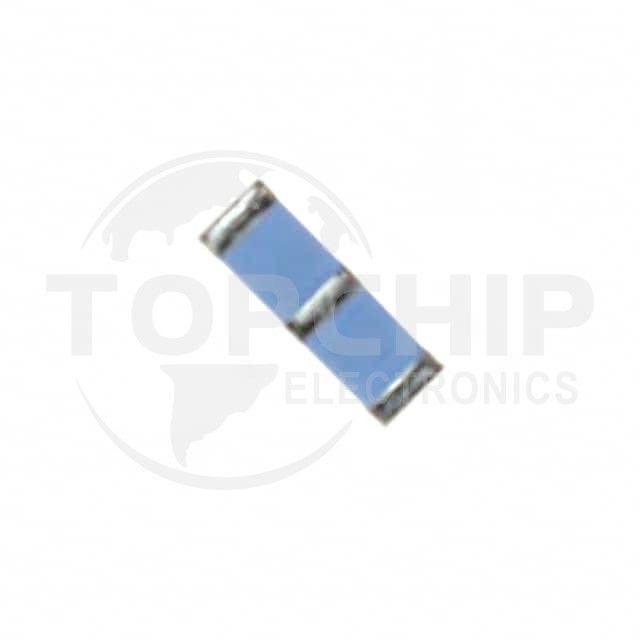

Image is for reference, please contact us to get the real picture

Manufacturer Part
Y1685V0001AA0W
Manufacturer
VPG Foil
Description
RES NETWORK 2 RES 10K OHM 1505
Category
Resistors
Family
Arrays/Networks Resistors
Series
-
In Stock
0
Datasheets
-

Y1685V0001AA0W Specifications

  • Series:VFCD1505
  • Package:Tray
  • Part Status:Active
  • Circuit Type:Voltage Divider
  • Resistance (Ohms):10k
  • Tolerance:±0.05%
  • Number of Resistors:2
  • Resistor Matching Ratio:±0.05%
  • Resistor-Ratio-Drift:±0.1ppm/°C
  • Number of Pins:3
  • Power Per Element:50mW
  • Temperature Coefficient:±0.2ppm/°C
  • Operating Temperature:-55°C ~ 125°C
  • Applications:Voltage Divider (TCR Matched)
  • Mounting Type:Surface Mount
  • Package / Case:1505 (3812 Metric)
  • Supplier Device Package:-
  • Size / Dimension:0.150" L x 0.050" W (3.81mm x 1.27mm)
  • Height - Seated (Max):0.025" (0.64mm)
