PF0553.822NL

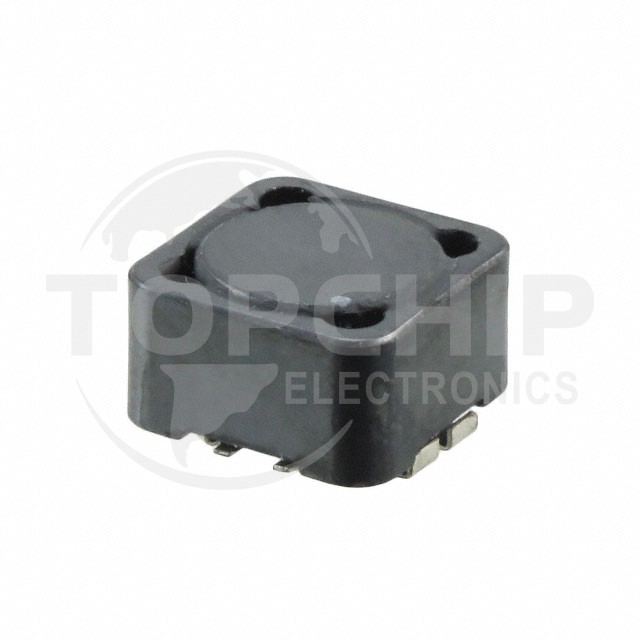

Image is for reference, please contact us to get the real picture

Manufacturer Part
PF0553.822NL
Manufacturer
PulseLarsen Antenna
Description
INDUCT ARRAY 2 COIL 8.9UH SMD
Category
Inductors, Coils, Chokes
Family
Arrays, Signal Transformers
Series
-
In Stock
0
Datasheets
-

PF0553.822NL Specifications

  • Series:PF0553NL
  • Package:Tray
  • Part Status:Active
  • Number of Coils:2
  • Inductance - Connected In Parallel:8.9 µH
  • Inductance - Connected In Series:35 µH
  • Tolerance:±20%
  • Current Rating - Parallel:6.2 A
  • Current Rating - Series:3.1 A
  • Current Saturation - Parallel:12 A
  • Current Saturation - Series:6.1 A
  • DC Resistance (DCR) - Parallel:15mOhm Max
  • DC Resistance (DCR) - Series:62mOhm Max
  • Shielding:Shielded
  • Ratings:-
  • Operating Temperature:-40°C ~ 125°C
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Height:0.343" (8.71mm)
