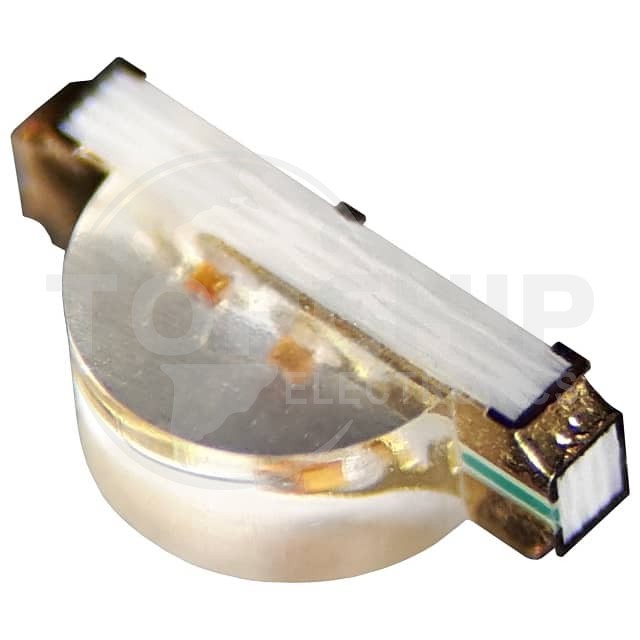

B2102USUG20C000633U1930 Specifications

• Series:B2102USUG20
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Color:Red, Yellow-Green
• Configuration:Independent
• Lens Color:-
• Lens Transparency:Clear
• Millicandela Rating:71.5mcd Red, 45mcd Yellow-Green
• Lens Style:Rectangle with Domed Top
• Lens Size:2.00mm x 1.00mm
• Voltage - Forward (Vf) (Typ):2V Red, 2.1V Yellow-Green
• Current - Test:20mA
• Viewing Angle:130° Red, 124° Yellow-Green
• Mounting Type:Surface Mount, Right Angle
• Wavelength - Dominant:624nm Red, 571nm Yellow-Green
• Wavelength - Peak:632nm Red, 573nm Yellow-Green
• Features:-
• Package / Case:1206 (3216 Metric)
• Supplier Device Package:1206
• Size / Dimension:3.20mm L x 1.50mm W
• Height (Max):1.10mm
