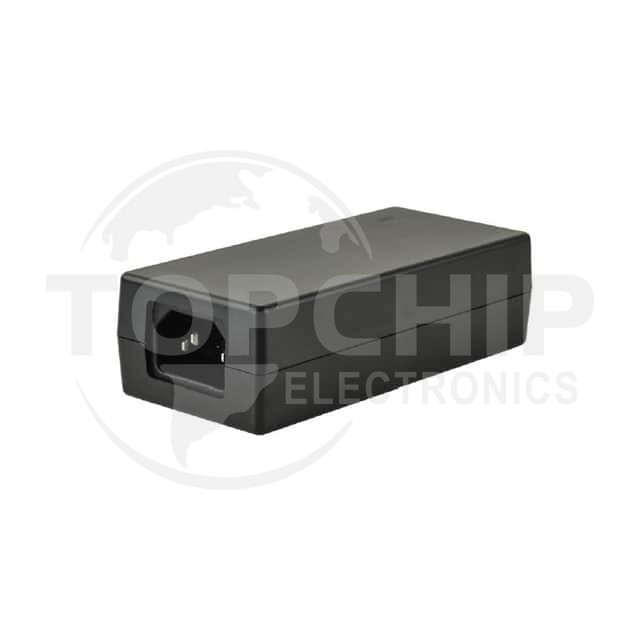

SDI40-15-UC-P5 Specifications

• Series:SDI40-U (40W)
• Package:Box
• Part Status:Active
• Region Utilized:North America
• Form:Desktop (Class I)
• Input Type:Cord
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output:15V
• Current - Output (Max):2.7A
• Power (Watts):41 W
• No Load Power Consumption:75mW (Max)
• Polarization:Positive Center
• Applications:ITE (Commercial)
• Efficiency:Level VI
• Operating Temperature:0°C ~ 40°C
• Output Connector:Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
• Cord Length:60.2" (1.53m)
• Input Connector:IEC 320-C14
• Size / Dimension:4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm)
• Approval Agency:CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL
• Standard Number:C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3
