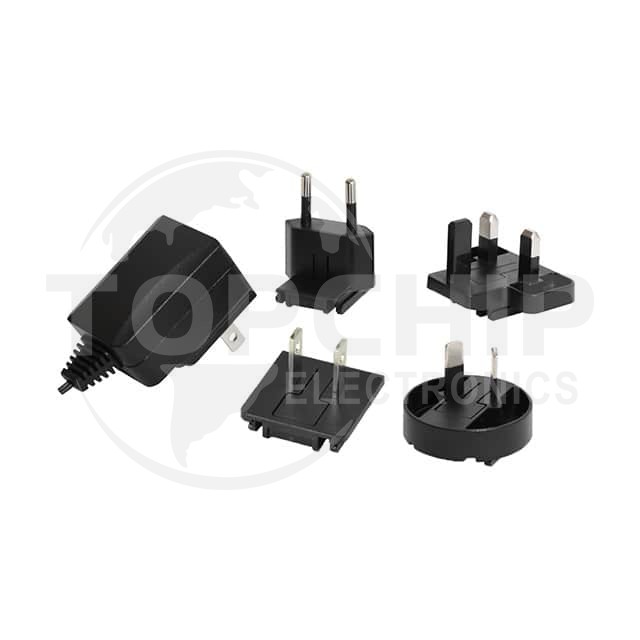

SMI6B-15-4-P7 Specifications

• Series:SMI6B (6W)
• Package:Box
• Part Status:Active
• Region Utilized:International
• Form:Wall Mount (Class II)
• Input Type:Multi-Blade (Included)
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output:15V
• Current - Output (Max):400mA
• Power (Watts):6 W
• No Load Power Consumption:75mW (Max)
• Polarization:Positive Center
• Applications:ITE (Commercial)
• Efficiency:Level VI, CoC Tier 2
• Operating Temperature:0°C ~ 40°C
• Output Connector:Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm
• Cord Length:60.2" (1.53m)
• Input Connector:Multi-Blade (Included)
• Size / Dimension:1.85" L x 1.36" W x 1.04" H (47.0mm x 34.5mm x 26.4mm)
• Approval Agency:CB Scheme, CCC, CSA, FCC, IEC, PSE, RCM, UL
• Standard Number:C22.2 No. 60950-1; 60950-1; 62368-1
