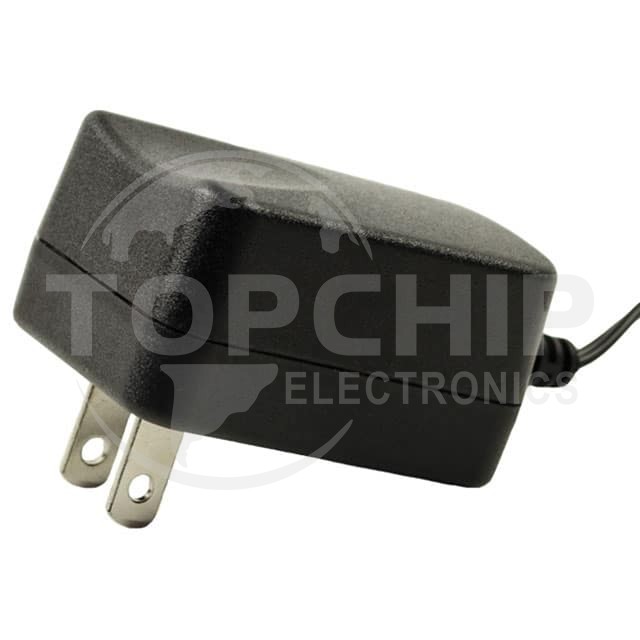

SWM12-18-NV-P5 Specifications

• Series:SWM12-N (12W)
• Package:Box
• Part Status:Active
• Region Utilized:North America
• Form:Wall Mount (Class II)
• Input Type:Fixed Blade
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output:18V
• Current - Output (Max):660mA
• Power (Watts):12 W
• No Load Power Consumption:100mW (Max)
• Polarization:Positive Center
• Applications:Medical
• Efficiency:Level VI, CoC Tier 2
• Operating Temperature:0°C ~ 40°C
• Output Connector:Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
• Cord Length:59" (1.50m)
• Input Connector:NEMA 1-15P
• Size / Dimension:2.11" L x 1.62" W x 1.11" H (53.5mm x 41.2mm x 28.2mm)
• Approval Agency:CB Scheme, CSA, EN, FCC, IEC, PSE, UL
• Standard Number:C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3
