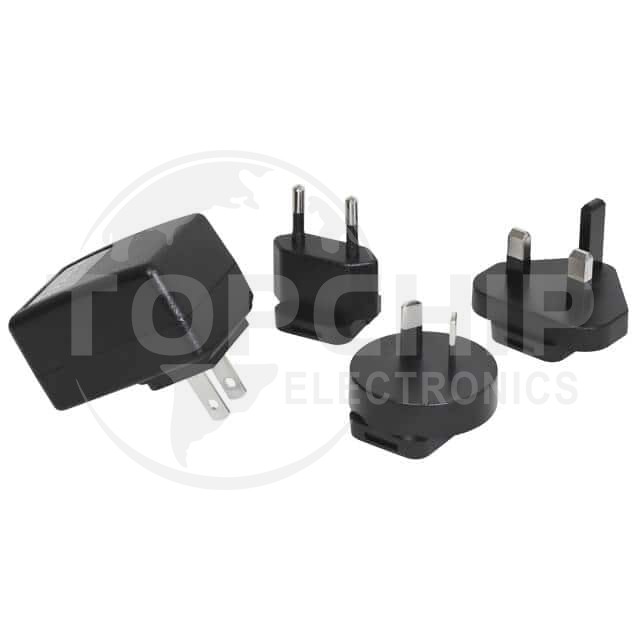

SMM6-9-V-P7 Specifications

• Series:SMM6 (6W)
• Package:Box
• Part Status:Active
• Region Utilized:International
• Form:Wall Mount (Class II)
• Input Type:Multi-Blade (Included)
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output:9V
• Current - Output (Max):660mA
• Power (Watts):5.9 W
• No Load Power Consumption:100mW (Max)
• Polarization:Positive Center
• Applications:Medical
• Efficiency:Level VI
• Operating Temperature:0°C ~ 40°C
• Output Connector:Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm
• Cord Length:59" (1.50m)
• Input Connector:Multi-Blade (Included)
• Size / Dimension:2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm)
• Approval Agency:CB Scheme, CSA, EN, FCC, IEC, UL
• Standard Number:C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3
