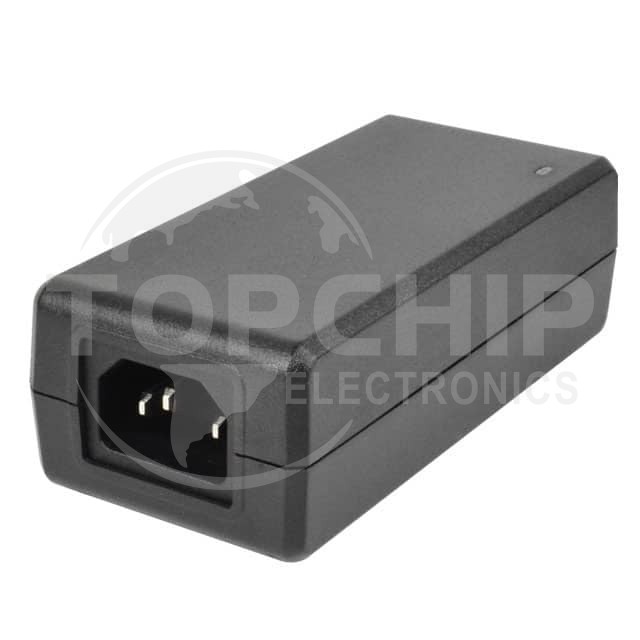

SDI50-24-U-P6R Specifications

• Series:SDI50-U (50W)
• Package:Box
• Part Status:Active
• Region Utilized:International
• Form:Desktop (Class I)
• Input Type:Cord (Sold Separately)
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output:24V
• Current - Output (Max):2.1A
• Power (Watts):50 W
• No Load Power Consumption:150mW (Max)
• Polarization:Positive Center
• Applications:ITE (Commercial)
• Efficiency:Level VI, CoC Tier 2
• Operating Temperature:0°C ~ 40°C
• Output Connector:Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
• Cord Length:72" (1.83m)
• Input Connector:IEC 320-C14
• Size / Dimension:4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm)
• Approval Agency:CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL
• Standard Number:C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1
