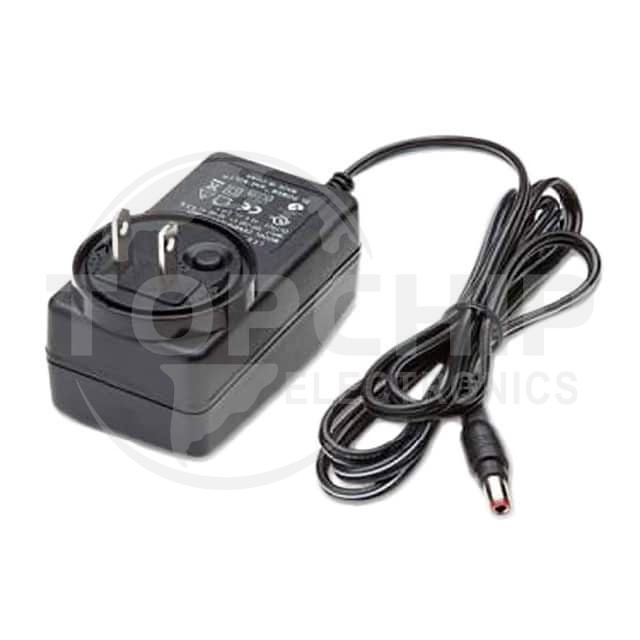

ME30A1203B01 Specifications

• Series:ME30 (30W)
• Package:Box
• Part Status:Active
• Region Utilized:North America
• Form:Wall Mount (Class II)
• Input Type:Fixed Blade, Multi-Blade (Sold Separately)
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output:12V
• Current - Output (Max):2.5A
• Power (Watts):30 W
• No Load Power Consumption:100mW (Max)
• Polarization:Positive Center
• Applications:Medical
• Efficiency:Level VI
• Operating Temperature:-20°C ~ 50°C
• Output Connector:Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
• Cord Length:4.7' (1.45m)
• Input Connector:NEMA 1-15P, Multi-Blade (Sold Separately)
• Size / Dimension:3.78" L x 2.17" W x 1.32" H (96.0mm x 55.0mm x 33.6mm)
• Approval Agency:CE
• Standard Number:-
