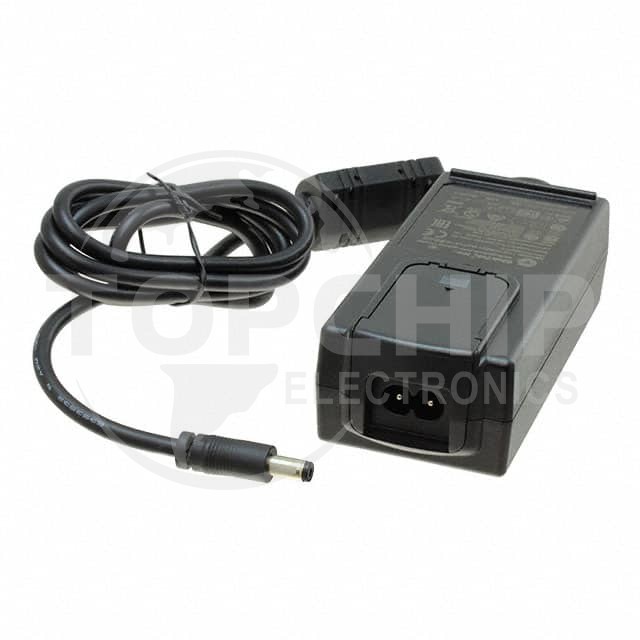

RR9LA8000CCPIM(R6B) Specifications

• Series:GTM96600-60VV.V-R3A
• Package:Bulk
• Part Status:Active
• Region Utilized:International
• Form:Desktop, Wall Mount (Class I)
• Input Type:Cord, Multi-Blade (Sold Separately)
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output:5V
• Current - Output (Max):8A
• Power (Watts):40 W
• No Load Power Consumption:75mW (Max)
• Polarization:Positive Center
• Applications:Household Appliances, ITE (Commercial), Medical
• Efficiency:Level VI
• Operating Temperature:-20°C ~ 40°C
• Output Connector:Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
• Cord Length:47.2" (1.20m)
• Input Connector:IEC 320-C6, Multi-Blade (Sold Separately)
• Size / Dimension:4.63" L x 2.11" W x 1.44" H (117.5mm x 53.5mm x 36.6mm)
• Approval Agency:CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI
• Standard Number:60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1
