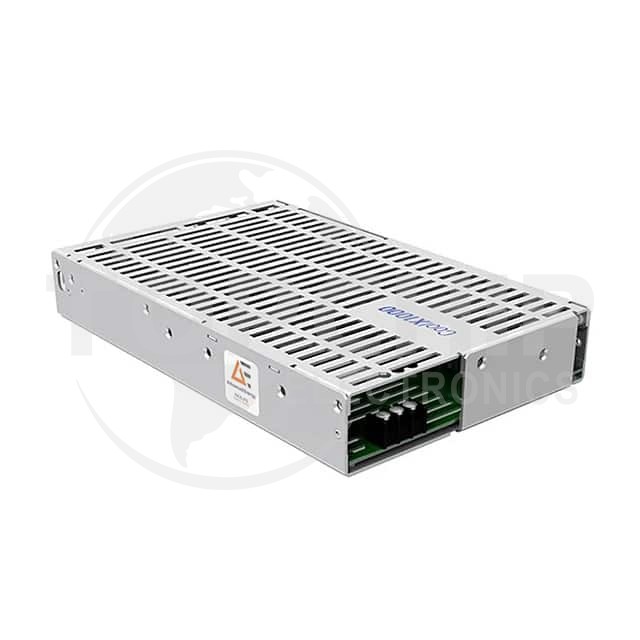

CX10S-H00BAC-P-A-DK00000 Specifications

• Series:COOLX®1000
• Package:Box
• Part Status:Active
• Type:Enclosed
• Number of Outputs:4
• Voltage - Input:85 ~ 264 VAC
• Voltage - Output 1:24V
• Voltage - Output 2:5V
• Voltage - Output 3:12V
• Voltage - Output 4:5V, 24V
• Current - Output (Max):8.3A, 21A, 15A, 6A, 3A
• Power (Watts):585W
• Applications:ITE (Commercial), Medical
• Voltage - Isolation:4 kV
• Efficiency:93%
• Operating Temperature:-40°C ~ 85°C
• Features:Adjustable Output, PMBus™, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:10.22" L x 6.46" W x 1.60" H (259.5mm x 164.0mm x 40.6mm)
• Approval Agency:CSA, EN, IEC, UL
• Standard Number:60601-1; 60950-1; 62368-1
