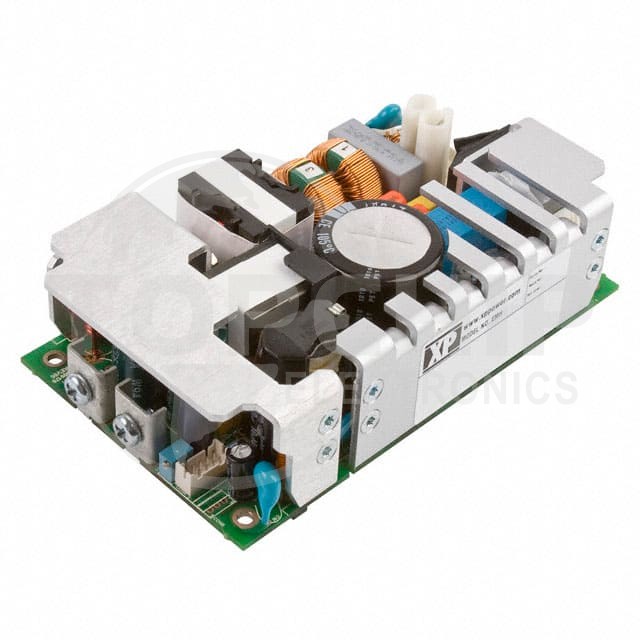

EMH250PS48 Specifications

• Series:EMH (250W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:80 ~ 275 VAC
• Voltage - Output 1:48V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):5.2A
• Power (Watts):250W
• Applications:ITE (Commercial), Medical
• Voltage - Isolation:4 kV
• Efficiency:87%
• Operating Temperature:0°C ~ 70°C (With Derating)
• Features:Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm)
• Approval Agency:CB, CE, TUV, UL
• Standard Number:62368-1
